LZM Fluoroplastic Self-priming Magnetic Pump

item no.:
LZM
lead time:
5-7 days
product orgin:
ANHUI-China
shipping port:
Any Port
payment:
T/T
color:
Grey
Lining plastic:
PE,PFA
Use:
Chemical industry
price range:
2000-6000USD

contact now

description

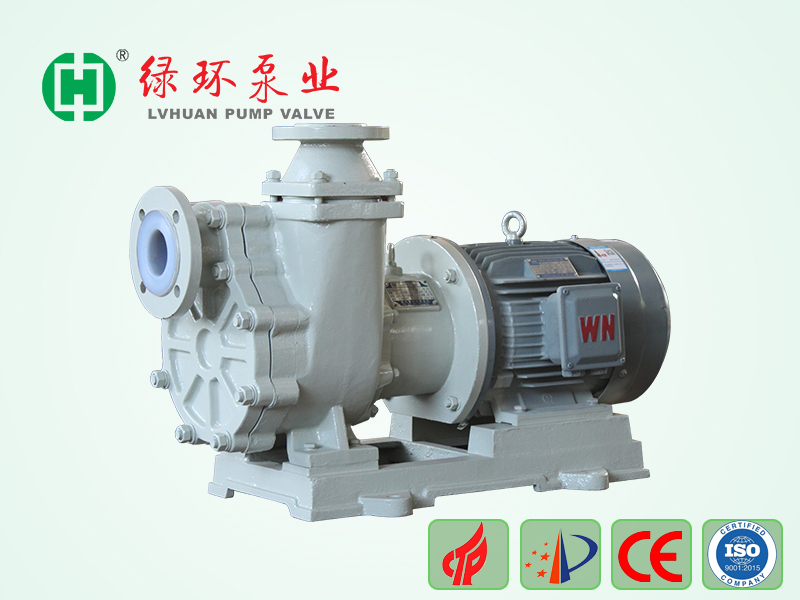

LZM Fluoroplastic Self-priming Magnetic Pump
Product overview
LZM lined fluorine self-priming magnetic pump is a new generation corrosion resistant self-priming magnetic pump, this pumps apply modern magnetic principles, permanent magnet magnetic drive to achieve torque contact-free transmission, the external mixing axial backflow water structure design, when the motor drives the external rotor (external magnetic steel) assembly rotation, through the magnetic field of the magnetic field line, through the non-metal isolation sleeve, drive the inner rotor ( the inner magnetic steel) assembly and the impeller to rotate synchronously, because the medium is closed in the static isolation sleeve, so as to achieve no leakage medium, the pump body is composed of suction chamber, liquid storage chamber, volute, backflow hole, gas-liquid separation chamber, etc. After the pump started, under the action of centrifugal force, the remaining liquid in the suction chamber and the air in the liquid suction pipe are stirred into a gas-liquid mixture by the impeller, the mixture enters the gas-liquid separation chamber through the volute. As the flow rate slows down, the gas-liquid separation caused, and the air is discharged from the pump discharge, and the liquid backflows to the pump through the backflow hole. After several cycles, the air in the liquid suction pipe is discharged. The pump formed a certain degree of vacuum, to achieve the role of self-priming, completely solve the shaft seal leakage of mechanical transmission pump, the pump is fully sealed, no leakage, no pollution, strong self-priming, strong acid resistance, high efficiency and energy saving new industrial pump. Performance to meet international standards.

Design feature

LZM self-priming magnetic pump collect all the excellent characteristics of magnetic pump, the advantage is that it can self-priming, self-priming height of up to 2-4 meters, fully combined with advantages of fluorine plastic self-priming pump and fluorine plastic magnetic pump, both with self-priming function, but also cancel the shaft seal, the use of magnetic coupling indirect transmission, completely eliminate the phenomenon of drip. The LZM magnetic drive pump is new synthetic materials with high strength mechanical properties, eliminating the phenomenon of magnetic eddy current. The pull back structure, it’s very easy to carry out internal maintenance and parts replacement, no need to disassemble the pipe, so that the daily repair and maintenance work becomes simple.

Product overview

Widely used in chemical industry, non-ferrous metal smelting, pesticide, acid and alkali making, paper making, pickling process, rare earth separation, electroplating, electronics, foil formation, acid and alkali unloading and other industries or workflow, is a novel structure of magnetic pump varieties of products, and high efficiency, energy saving, safety and practical.

tags : Fluoroplastic Self-priming Magnetic Pump
