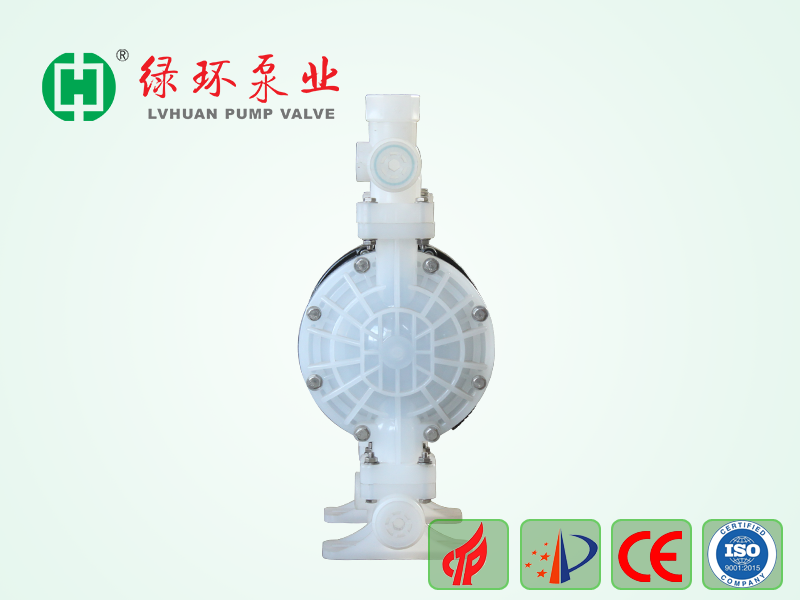

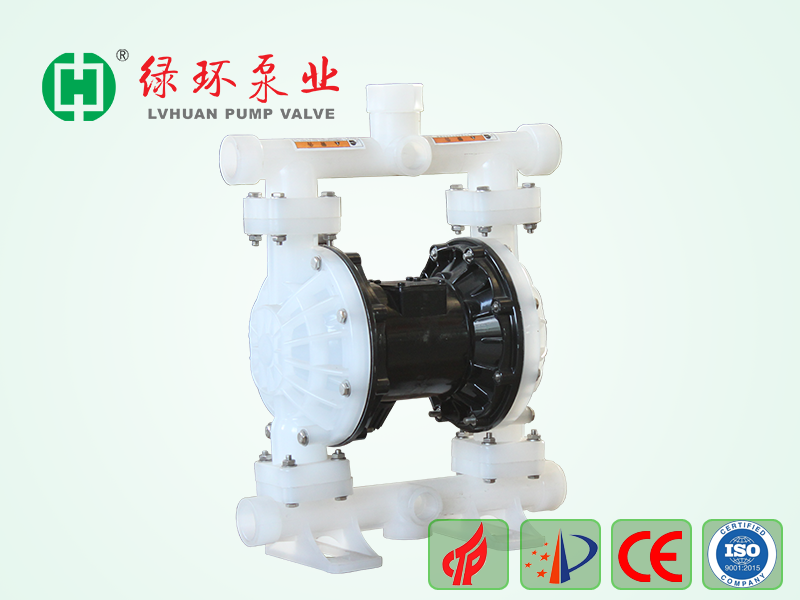

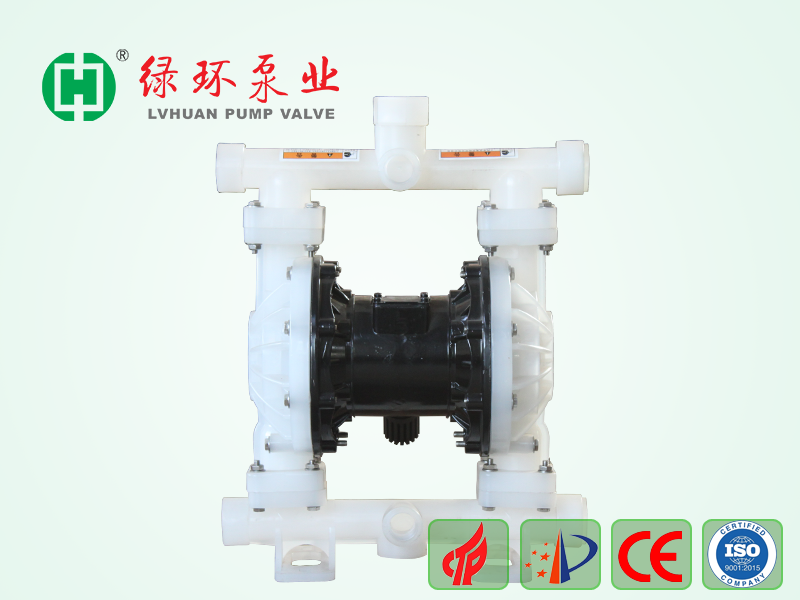

QBK Pneumatic Diaphragm Pump

QBK/QBY PNEUMATIC DIAPHRAGM PUMP Product overview Pneumatic diaphragm pump is a new type of pump equipment for conveying machinery, using compressed air as the power source, and can be used for all kinds of corrosive liquids. Pneumatic diaphragm pump

item no.:
QBK
lead time:
5-7 days
product orgin:
ANHUI-China
shipping port:
Any Port
payment:
T/T
color:
Grey
Lining plastic:
PP,PVDF, FEP, Metal,Cast Iron,stainless steel
Use:
Chemical industry
price range:
2000-6000USD

contact now

description

QBK/QBY PNEUMATIC DIAPHRAGM PUMP

Product overview

Pneumatic diaphragm pump is a new type of pump equipment for conveying machinery, using compressed air as the power source, and can be used for all kinds of corrosive liquids. Pneumatic diaphragm pump according to different media currently have a variety of materials to choose from: Pp(reinforced polypropylene), PVDF(polyvinylidene fluoride), integral lining f46 fluorine plastic, stainless steel, aluminum alloy, cast iron. The diaphragm can be made of nitrile rubber, neoprene rubber, fluorine rubber, polytetrafluoroethylene, polyperfluorinated ethylene propylene, etc., to meet the needs of different users. Placed in a variety of special occasions, for a variety of conventional pump can not be pumped media, have achieved satisfactory results. Because of the above characteristics of the pneumatic diaphragm pump, the pump has gradually invaded the market of other pumps since its birth, and occupies a part of it. Such as: painting, ceramics industry gas.

Diaphragm pumps have occupied an absolute dominant position, in some industries, such as environmental protection, wastewater treatment, construction, sewage, fine chemical industry is expanding its market share, has the irreplaceable pumps.

Design feature

1, do not need irrigation water. Suction up to 5m, head up to 60m, discharge pressure ≥6bar.

2, the flow is spacious, through the performance is good, allowing the maximum particle diameter of 10mm. When pumping mud and impurities, little wear to the pump;

3, the head, flow can be stepless adjust through the valve opening (air pressure adjustment between 1-7bar);

4, the pump has no rotating parts, no shaft seal, diaphragm and other pumping medium is completely separated from the moving parts, the working medium, the conveyed medium will not leak outwards. Therefore When pumping toxic, volatile or corrosive media, it will not cause environmental pollution and harm personal safety;

5, no need to use electricity, safe and reliable in flammable and explosive places:

6, can be immersed in the medium to work;

7, easy to use, reliable work, open and stop simply, open and close the gas valve. Even if there is no medium operation for a long time due to unexpected circumstances or sudden shutdown, once overload, the pump will automatically stop, with self-protection performance, when the load returns to normal, it can automatically start operation:

8, simple structure, less wearing parts, the pump structure is simple, installation, easy maintenance, the pump transport medium will not contact the valve, rod and other moving parts, unlike other pumps due to rotor, piston, gear, blade, etc., parts wear and tear and performance gradually decline;

9, can transport viscous liquid (viscosity below 10,000 cP);

10, the pump does not need oil lubrication, even idling, there is no effect on the pump, which is the biggest feature.MAN

Main use
Pump peanut butter, mashed potatoes, beer, paint, pigment, glue, adhesive, all kinds of tiles, porcelain, brick and ceramic glaze, all kinds of abrasives, etchants, cleaning oil dirt; all kinds of highly toxic, flammable, volatile liquid; all kinds of sewage, cement grouting and mortar; all kinds of strong acid, strong alkali, strong corrosive liquid; all kinds of viscous slurry, emulsion; all kinds of ointment cosmetics; pressure feeder before all kinds of solid-liquid separation equipment.

tags : Pneumatic Diaphragm Pump
