LY Stainless Steel SS304 SS316 Submersible Pump

item no.:
LY-001
lead time:
5-7 days
product orgin:
ANHUI-CHINA
shipping port:
Any Port
payment:
T/T,Credit Card,Alipay
color:
Grey
Lining plastic:
SS304 SS316 SS316L
Use:
Chemical industry
price range:
2000-4000USD

contact now

description

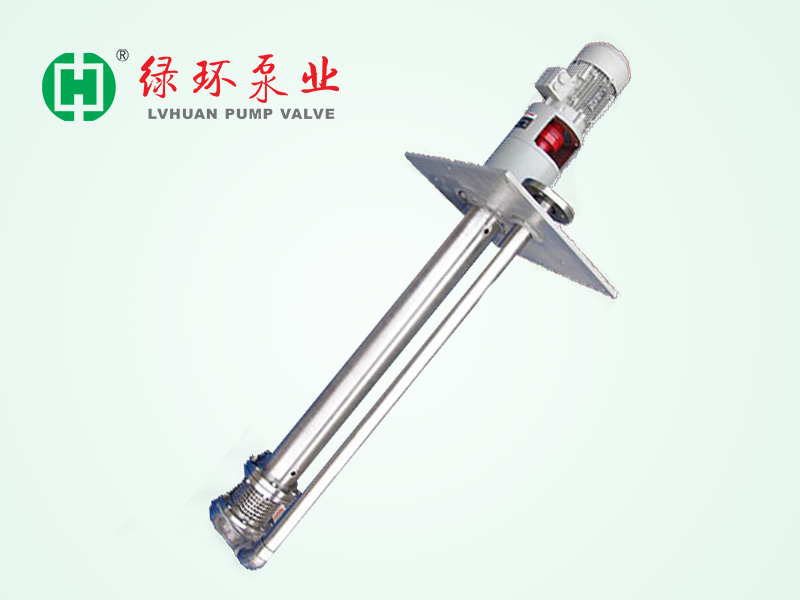

LY type stainless steel submerged pump
Product overview
LY liquid pump is designed in accordance with national standards, the liquid part of the contact with the liquid is all made of stainless steel, according to the working conditions, the depth of the liquid is 1 to 3 meters, the pump part is all placed in the liquid, with a wide range corrosion resistance, high efficiency, the shaft connection structure is safe and reliable, easy to disassemble and other advantages, no need to pour liquid can be pumped, due to the pump operation the axial force and radial force are respectively supported by rolling bearings and sliding bearings, so the operation is quiet and noiseless, and it is a high-tech product that truly integrates environmental protection and energy saving, with strong corrosion resistance, good wear resistance, high mechanical strength, no oxidation, no toxin decomposition, food grade and so on. Reasonable design, compact structure, reliable performance, easy to use and maintenance, high efficiency, high energy saving.

Design feature
1, LY liquid pump according to the national standard design of high efficiency and energy saving new liquid centrifugal pump;
2, pump body, pump cover, impeller and other flow parts are high-quality stainless steel or special materials;
3, no shaft seal, bearing, sleeve using wear-resistant high temperature graphite, PTFE and other materials, effectively ensure the service life ;
4, can be pumped without liquid filling, liquid depth up to 3m;
5, no need for independent lubrication and cooling water, reducing energy consumption;
6, vertical installation, compact structure, low vibration, low noise, high efficiency, smooth operation;
7, customized the requirements of heat preservation, high temperature liquid pump, heat preservation sulfur liquid pump (special customized full steam insulation liquid pump).

Main use
Widely used in petroleum, chemical industry, alkali making, smelting, rare earth, pesticides, dyes, medicine, paper making, electroplating, electrolysis, radio, foil formation, scientific research institutions, national defense industry and other production processes to transport highly corrosive liquids, especially suitable for concentrated acid, anhydrous acid, strong alkali, strong oxidant, organic solvents and other highly corrosive media transport.
Performance range :1.6-10mpa; flow rate 1.8-400m3/h; lift 15-125m; power 1.5-280kw
Applicable temperature :-20℃-120℃, new materials can withstand up to 350℃;
Note: Conveying medium with a proportion greater than 1.3mg/cm³should be explained when ordering; no empty operation is allowed; it is prohibited to transport media containing particles or crystals.

tags : For submersible depth 600-2000mm
