DBY Electric Diaphragm Pump

DBY ELECTRIC DIAPHRAGM PUMP Product overview DBY type stainless steel electric diaphragm pump is a new type industrial pump, which has made breakthrough progress in diaphragm material in recent years. The pump is used in petrochemical, ceramics, metallurg

item no.:
DBY
lead time:
5-7 days
product orgin:
ANHUI-China
shipping port:
Any Port
payment:
T/T
color:
Grey
Lining plastic:
stainless steel
Use:
Chemical industry
price range:
2000-6000USD

contact now

description

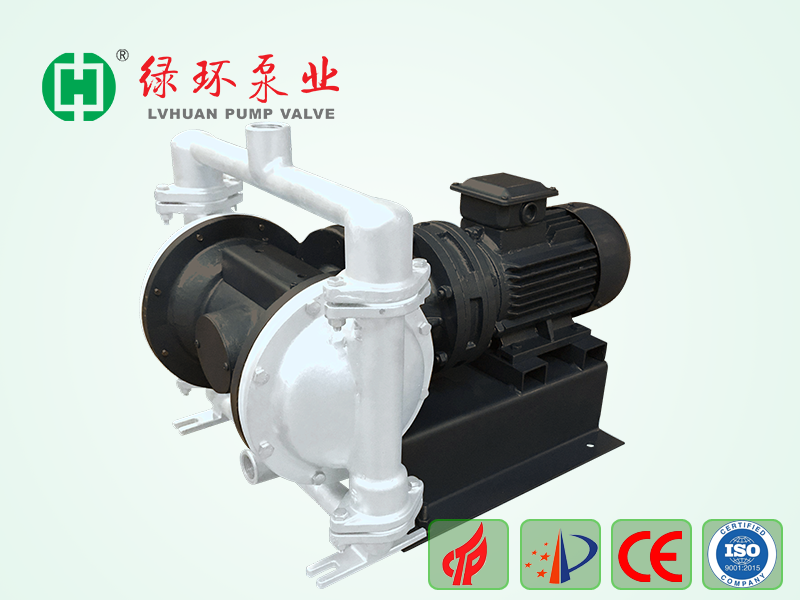

DBY ELECTRIC DIAPHRAGM PUMP

Product overview

DBY type stainless steel electric diaphragm pump is a new type industrial pump, which has made breakthrough progress in diaphragm material in recent years. The pump is used in petrochemical, ceramics, metallurgy, food industries, the main feature is does not require irrigation water, suction capacity more than 4meter, in case of the diaphragm is not broken zero leakage, through the performance is strong, the diameter 10mm or less particles, mud, etc., it can be effortlessly passed. Because the diaphragm will be separated by the conveying medium and the transmission mechanical parts, the medium is absolutely will not leak out, the service life is greatly extended without shaft seal, according to different medium, the diaphragm is divided into neoprene rubber, fluorine rubber, butadiene rubber, tetrafluoroethylene, etc., can fully meet the requirements of different users.

Working principle

The main working principle is motor drives the diaphragm on the left and right plunger through the reducer box for reciprocating movement, the upper and lower one-way ball valve is installed in the left and right pump chamber. The diaphragm moves causes the volume change in the working chamber, forcing the four one-way ball valves to alternately open and close, so as to continuously inhale and discharge the liquid. In recent years, as the electric diaphragm pump has made breakthrough progress in the diaphragm material, more and more industrialized countries have adopted the electric diaphragm pump, replacing part of the centrifugal pumps, screw pumps used in petrochemical, ceramics, metallurgy and other industries, especially suitable for low head, high viscosity medium transport.

Main use

1, a variety of highly toxic, flammable, volatile liquids.

2, a variety of strong acids, strong alkalis, strong corrosive liquids.

3, can transport high temperature medium (150℃).

4, as a variety of filter press before the pressure feeding device.

5. Hot water recovery and circulation.

6. Oil filling truck, oil depot, oil product handling.

7. Pump pickles, mashed potatoes, chocolate, etc.

8, pump paint, gum, pigment adhesive.

9, all kinds of porcelain glaze, cement grouting, mortar, mud.

10, all kinds of rubber latex, organic solvents, fillers.

11, use the pump for the tanker barge clearance to absorb the sewage and remaining oil in the warehouse.

12, beer and baking powder dilute, syrup, molasses.

13. Pump sewage and sediment in mines, tunnels, sewers.

14, a variety of special media suction.
